Sunway Communication acquired its cable and connector manufacturing unit Alex in 2014, but its experience dates all the way back to 1997. Our cable and connector business has since then focused on developing new and innovative products to meet emerging customer requirements for higher data transmission speeds and connector complexity. Particularly, we see increasingly more interest in active optical cables (AOC) for data center and consumer applications, eg. 8K TV and Virtual Reality headmount displays. In the automotive industry, the megatrends of electrification and autonomous vehicles drive development of new cables and connectors. As expected, our deeply rooted RF competence is also appreciated for several types of RF coaxial connectors and connectors. Below are examples of products that can be customized using Sunway capabilities.

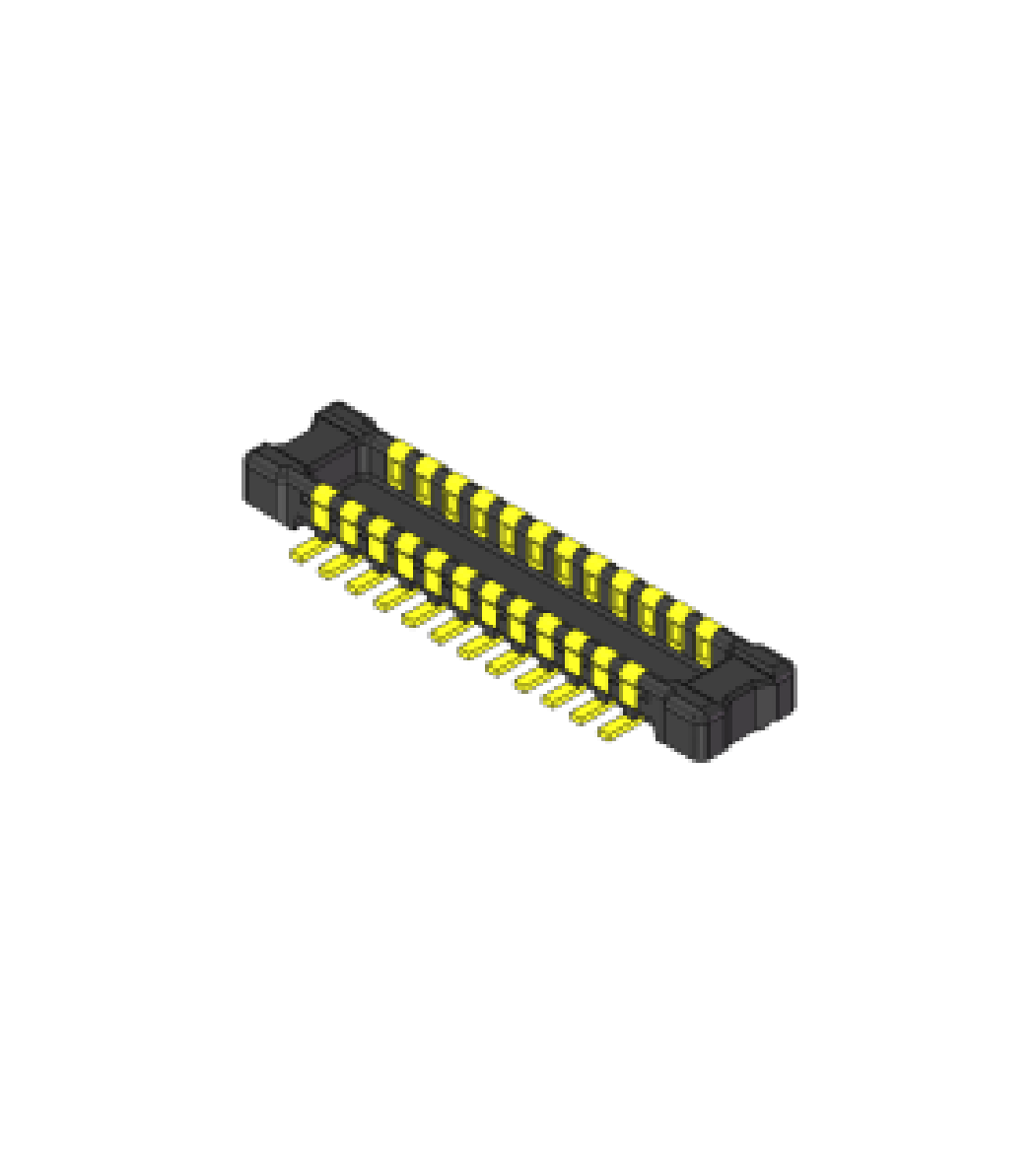

Specification：
Pitch (mm): 0.40
Height (mm): 0.80
Width (mm): 2.50
Product and Supply Features：
1. 0.4mm pitch, 2 rows, 0.8mm stacking height, 2.5mm depth.
2. Contact structure ensures high self-cleaning performance and high contact reliability.
3. Secure hold-downs prevent insulator breakage and peeling from FPC.
4. 2-point contact design to resist twisting stress.
5. Pb-free
6. Cross mating with competitor-Panasonic A4S compatible.
7. Pin count availability: 10, 24, 30, 40
