PRODUCTS

RF Connectivity Solutions and More

Pioneering connectivity concepts have propelled Sunway Communication into a global leader. With a broad range of products covering most of the transmit and receive chains, we understand the system impact of each critical component we supply. Our global customer base across multiple industries has made us experts in products for virtually any system: Bluetooth, WiFi, GNSS (GPS, Galileo, Glonass, Beidou, etc.), NFC, and of course the various cellular standards like 4G LTE and 5G with MIMO incl. related mm-wave components. Ultra-Wideband (UWB) is another technology where Sunway is taking a leading role. We have partnered with NXP Semiconductors and created UWB solutions, both off-the-shelf modules, tags and antennas as well as the capability to customize antennas and other solutions to customers worldwide.

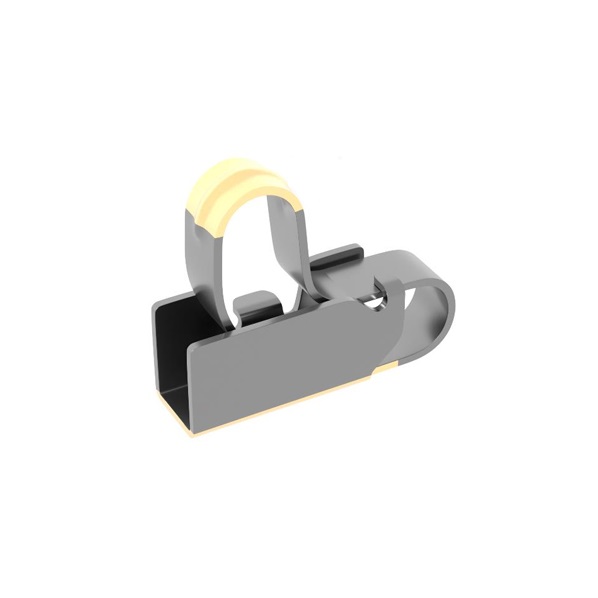

RF Spring Contacts



L-shape






Specification:

Material: Copper alloy T=0.10mm

L2.25*W2.70*H2.33mm

Working Range: 2.40-3.00mm

PCB Footprint: L1.20*W1.55mm

Plating: Contact area: Au 0.10um min

Plating Au 0.05um min on overall

Underplating1.0-3.0um Ni overall





Product and Supply Features:

Contact resistance: 18 Milliohms Max

Normal Force: 60g/f-110g/f(Working Range)

Durability test: 1500 cycles

?

?

Downloads:

  • Sunway Spring Contact Datasheet
Back to list
